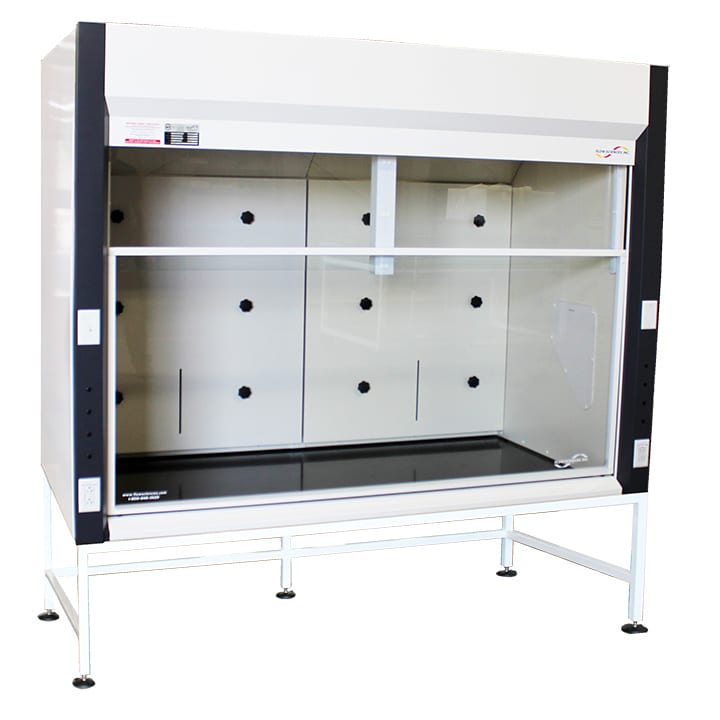

Distillation Fume Hood

We have earn a huge clientele in contrast the global markets. While by offering almost wide range of Distillation Fume Hoods. Due to the clients in the global markets and claim. Therefore the topnotch position of Distillation Low Height Fume Hood Manufacturer and Exporter in gujarat. These almost products are manufacture to the needs of numerous pharmaceutical labs, chemical industry, research centers and others.

Features:

• Easy due to operate
• Majority air enters through the opening of sash
• Exhaust volume remains constant

Our well-organize infrastructure is equipped with machines seems like lathe machine, welding machine and cutting machine. With our stringent quality control norms, so we also maintain international quality standard in contrast process. These almost laboratory fume hoods consist of standard. Rather vertically operate counter balanced toughened glass sash or combination of horizontal & vertical sash opening. Finally Choice between steel and wooden fume hood is always available as per the requirements. It will have double skinned construction to make it safer. It comprises of electrical components and utilities as per the need of experiment.

Laboratory fume hoods are a type of ventilation system with the primary function to exhaust chemical fumes, vapors, gasses, dust, mist and aerosol. Fume hoods also serve as physical barriers between reactions and the laboratory, offering a measure of protection against inhalation exposure, chemical spills, run-away reactions and fires.

A typical fume hood has a box like structure with a moveable sash window. Experimental procedures are performed within the hood which is consistently and safely ventilated, usually by means of an extract blower and ductwork. Chemical fumes are exhausted and diluted many times over in the atmosphere and have a negligible effect on human health. When environment concerns are of importance, an extract treatment system, often referred to as a scrubber is installed to remove most of the vapors from the exhaust air stream.

The hood functions by maintaining a relatively negative pressure in the interior of the hood to prevent any contaminant from escaping while drawing air in through the hood opening at a consistent rate. A suitable hood face velocity (the speed at which air is drawn into the hood) is of importance to the safe and effective operation of a fume hood. While excessive face velocities can often result in turbulence and reduce containment, insufficient velocities can also compromise hood performance.

Perchloric acid reacts violently with organic materials. Dried perchloric acid is also highly explosive. Therefore, perchloric fume hoods require built-in water wash down systems in order to prevent perchlorate salt deposits. Interior liners are made of acid resistant materials like stainless steel. Interior corners are coved to aid in cleaning. All procedures that use perchloric acid must be confined to a perchloric fume hood, to prevent dangerous reactions with other chemicals.

Floor mounted fume hoods are used for applications which require large apparatus. As the name implies, these hoods are floor mounted without any work surface. This facilitates the transfer of equipment and materials into, and out from the hood. Floor mounted hoods are sometimes referred to, although wrongly, as walk-in fume hoods.

A demonstration hood has all 4 sides made of safety glass, and this hood is commonly used in educational institutions to allow students to easily view the teachers’ demonstrations inside the fume hood from all angles, enhancing efficiency in teaching laboratories. The sliding “door” to the hood. By using the sash to adjust the front opening, airflow across the hood can be adjusted to the point where capture of contaminants is maximized. Each hood has its optimum sash configuration. The sash should be held in this position when working in the hood and closed completely when the hood is not in use.

The sash may be opened completely to set up equipment, but must be returned to the optimum setting prior to generating contaminants inside the hood. Biological safety cabinets, laminar flow clean benches, pharmacy isolators and glove boxes are sometimes mistaken for fume hoods. These devices utilize particulate filters which do not remove chemical vapors. With specific rare exceptions, they should not be used for work involving chemicals.

A demonstration hood has all 4 sides made of safety glass, and this hood is commonly used in educational institutions to allow students to easily view the teachers’ demonstrations inside the fume hood from all angles, enhancing efficiency in teaching laboratories.

A typical fume hood has a box like structure with a moveable sash window. Experimental procedures are performed within the hood which is consistently and safely ventilated, usually by means of an extract blower and ductwork. Chemical fumes are exhausted and diluted many times over in the atmosphere and have a negligible effect on human health. When environment concerns are of importance, an extract treatment system, often referred to as a scrubber is installed to remove most of the vapors from the exhaust air stream.
